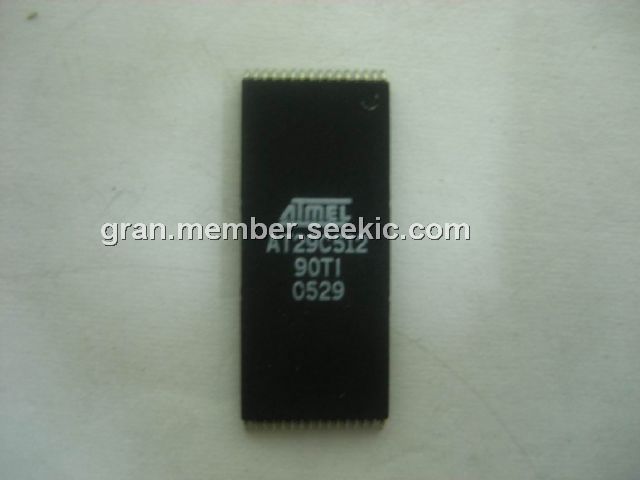

AT29C512-90TI

PEROM, TSOP32, -0.6V to +6.25V, 5-volt Only Reprogramming, Fast Read Access Time-70 ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.25~1.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.25~1.25

PartNumber:: AT29C512-90TI

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ruth's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-08

From Other Seller

Part Number:AT29C512-90TI
US $1.25 - 1.25
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C512-90TI is a 5-volt only in-system Flash programmable and erasable read only memory (PEROM). Its 512K of memory is organized as 65,536 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C512-90TI offers access times to 70 ns with power dissipation of just 275 mW over the commercial temperature range. When the device is deselected, the CMOS standby current is less than 100 μA. The AT29C512-90TI endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C512-90TI absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C512-90TI features: (1)Fast Read Access Time-70 ns; (2)5-volt Only Reprogramming; (3)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 512 Sectors (128 Bytes/Sector), Internal Address and Data Latches for 128 Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Two 16K Bytes Boot Blocks with Lockout; (7)Fast Sector Program Cycle Time -10 ms; (8)DATA Polling for End of Program Detection.
