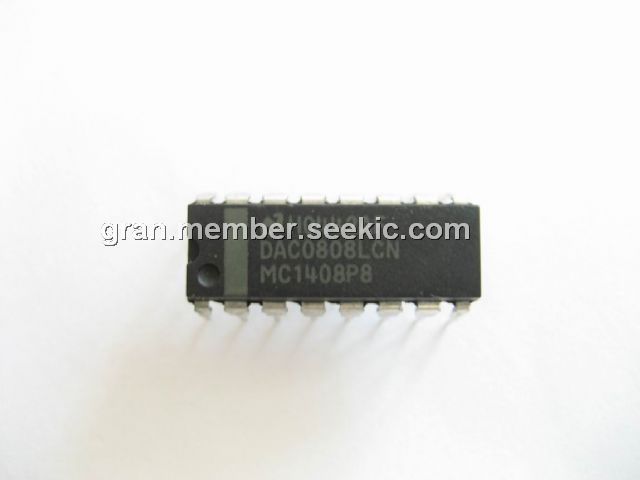

Product Summary
The DAC0808LCN is an 8-bit monolithic digital-to-analog converter (DAC) featuring a full scale output current settling time of 150 ns while dissipating only 33 mW with g5V supplies. The power supply current of the DAC0808LCN is independent of bit codes, and exhibits essentially constant
Parametrics
DAC0808LCN absolute maximum ratings: (1)Power Supply Voltage: VCC +18 VDC, VEE -18 VDC; (2)Digital Input Voltage, V5±V12: -10 VDC to +18 VDC; (3)Applied Output Voltage, VO: -11 VDC to +18 VDC; (4)Reference Current, I14: 5 mA; (5)Reference Amplifier Inputs, V14, V15: VCC, VEE; (6)Power Dissipation: 1000 mW; (7)ESD Susceptibility: TBD; (8)Storage Temperature Range: -65℃ to +150℃.
Features
DAC0808LCN features: (1)Relative accuracy: ±0.19% error maximum (DAC0808); (2)Full scale current match: ±1 LSB typ; (3)7 and 6-bit accuracy available (DAC0807, DAC0806); (4)Fast settling time: 150 ns typ; (5)Noninverting digital inputs are TTL and CMOS compatible; (6)High speed multiplying input slew rate: 8 mA/μs; (7)Power supply voltage range: ±4.5V to ±18V; (8)Low power consumption: 33 mW @±5V.

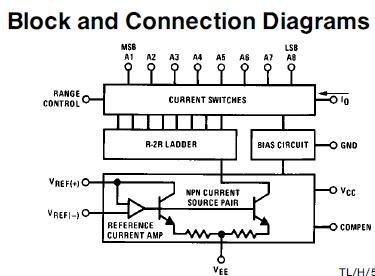

Diagrams
