Product Summary

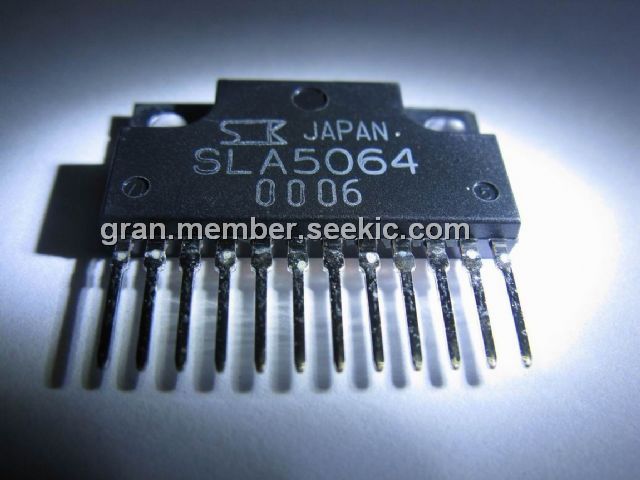

The SLA5064 is a N-channel+P-channel 3-phase motor drive.
Parametrics
Absolute maximum ratings:(1)VDSS: 60v at N channel; –60 V at P channel; (2)VGSS: ±20v at N channel; ±20 V at P channel; (3)ID: 10A at N channel; –10 A at P channel; (4)ID(pulse): 15 (PW≤1ms, duty≤25%)A at N channel; –15 (PW≤1ms, duty≤25%) A at P channel; (5)PT: 5 (Ta=25℃, with all circuits operating, without heatsink) W; 40 (Tc=25℃, with all circuits operating, with infinite heatsink) W; (6)θ j-a: 25 (Junction-Air, Ta=25℃, with all circuits operating) ℃/W; (7)θ j-c: 3.125 (Junction-Case, Tc=25℃, with all circuits operating) ℃/W; (8)VISO: 1000 (Between fin and lead pin, AC) Vrms; (9)Tch: 150 ℃; (10)Tstg: –40 to +150 ℃.
Features
Electrical characteristics: (1)V(BR)DSS: 60 V min at ID=100μA, VGS=0V at N channel; –60 V min at ID=–100μA, VGS=0V at P channel; (2)IGSS: ±10 μA max at VGS=±20V at N channel; -/+10 μA max at VGS=±20V at P channel; (3)IDSS: 100 μA max at VDS=60V, VGS=0V at N channel; –100 μA max at VDS=–60V, VGS=0V at P channel; (4)VTH: 1.0 to 2.0 V at VDS=10V, ID=250μA at N channel; –1.0 to –2.0 V at VDS=–10V, ID=–250μA at P channel.

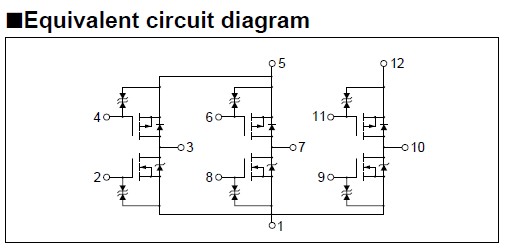

Diagrams
