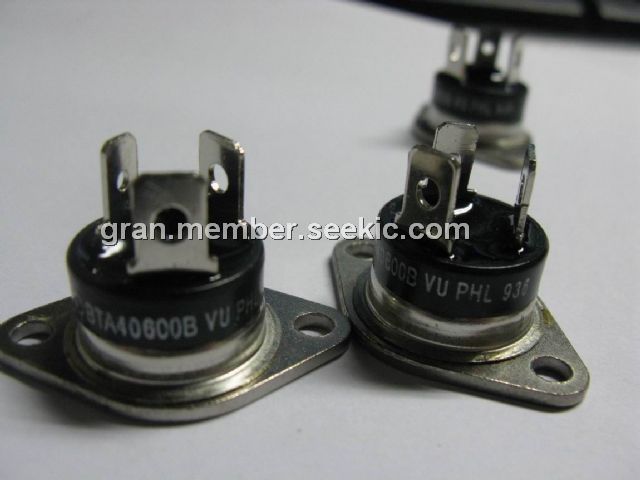

Product Summary

Available in high power packages, the BTA40-600B is suitable for general purpose AC switching. The BTA40-600B can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor speed controllers.

Parametrics

BTA40-600B maximum ratings: (1)IT, RMS on-stage current: 40A; (2)ITSM, non repetitive surge peak on-stage current when F=50Hz and t=20ms: 400A; when F=60Hz and t=16.7ms: 420A; (3)I2t value for fusing when tp=10ms: 880A2s; (4)dl/dt, critical rate of rise of on-stage current IG=2xIGT,tr≤100ns when F=120Hz, Tj=125℃: 20A/μs; (5)IGM, peak gate current, tp=20μs, TJ=125℃: 8A.

Features

BTA40-600B features: (1)IT(RMS): 40A; (2)VDRM/VRRM: 600 and 800V; (3)IGT(Q1): 50mA.

Diagrams

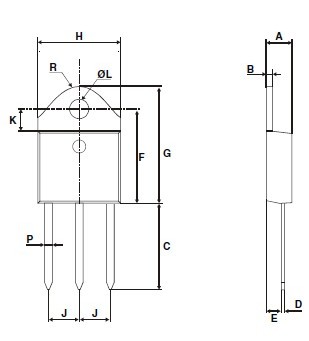

BTA40-600B Package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTA40-600B
BTA40-600B
STMicroelectronics
Triacs 40 Amp 600 Volt
Data Sheet
0-1: $3.04
1-10: $2.94
10-100: $2.86
100-250: $2.77
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTA40
BTA40
Other

Data Sheet
Negotiable
BTA40 A
BTA40 A
Other

Data Sheet
Negotiable
BTA40 B
BTA40 B
Other

Data Sheet
Negotiable
BTA40-400B
BTA40-400B
STMicroelectronics
Triacs 40A STANDARD TRIACS
Data Sheet
Negotiable
BTA40-600B
BTA40-600B
STMicroelectronics
Triacs 40 Amp 600 Volt
Data Sheet
0-1: $3.04
1-10: $2.94
10-100: $2.86
100-250: $2.77
BTA40-700B
BTA40-700B
STMicroelectronics
Triacs 40 Amp 700 Volt 50mA TRIAC
Data Sheet
0-1: $4.77
1-10: $3.71
10-100: $3.59
100-250: $3.49
