Product Summary

The DDB6U205N16L is a netz-dioden-modul rectifier diode module.

Parametrics

DDB6U205N16L absolute maximum ratings: (1)Periodische Spitzensperrspannung Tvj = - 40℃ Tvj max, VRRM: 1600 V; (2)repetitive peak reverse voltage Stospitzensperrspannung Tvj = + 25℃ Tvj max, VRSM: 1700 V; (3)Durchlastrom-Grenzeffektivwert (pro Element), IFRMSM: 120 A; (4)Stostrom-Grenzwert Tvj = 25℃, tp = 10ms IFSM: 1600 A; (5)surge forward current Tvj = Tvj max, tp = 10ms: 1375 A; (6)Grenzlastintegral Tvj = 25℃, tp = 10ms I2t: 12800 A2s; (7)It2-value Tvj = Tvj max, tp = 10ms: 9450 A2s

Features

DDB6U205N16L features: (1)Anzugsdrehmoment für mechanische Befestigung mounting torque Toleranz / tolerance ±15% M1 6 Nm; (2)Anzugsdrehmoment für elektrische Anschlüsse terminal connection torque Toleranz / tolerance +5% / -10% M2 4 Nm; (3)Gewicht weight G typ. 220 g; (4)Kriechstrecke creepage distance 12,5 mm; (5)Schwingfestigkeit f = 50Hz 50 m/s2.

Diagrams

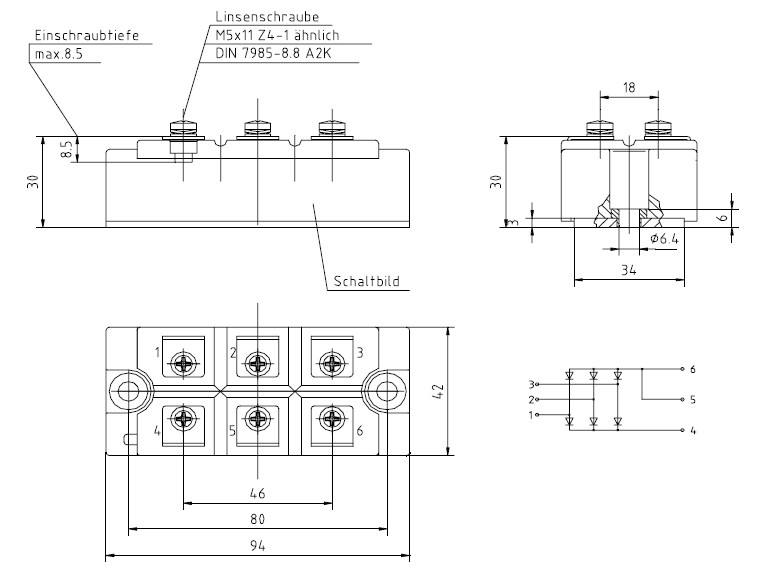

DDB6U205N16L package diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DDB6U205N16L
DDB6U205N16L

Infineon Technologies

Discrete Semiconductor Modules 1600V 205A UN-CNTL

Data Sheet
