Product Summary

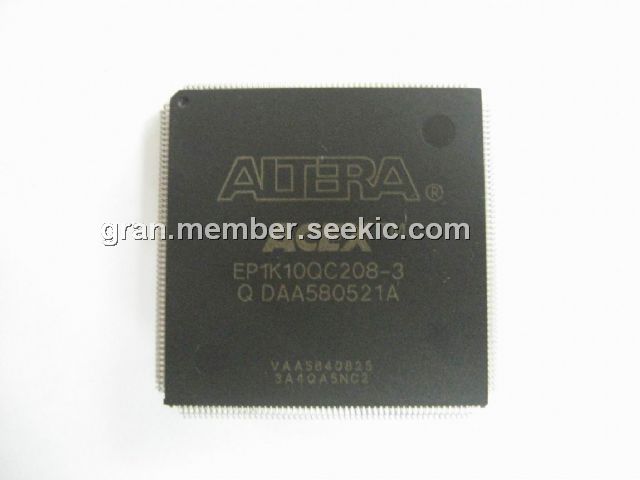

The EP1K10QC208-3 is a Programmable Logic Device. It provides a die-efficient, low-cost architecture by combining look-up table (LUT) architecture with EABs. These elements make EP1K10QC208-3 suitable for complex logic functions and memory functions such as digital signal processing, wide data-path manipulation, data transformation and microcontrollers, as required in high-performance communications applications.
Parametrics
EP1K10QC208-3 absolute maximum ratings: (1)Supply voltage With respect to ground: –0.5 to 3.6 V; (2)DC input voltage: –2.0 to 5.75 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)Junction temperature PQFP, TQFP, and BGA packages, under bias: 135 ℃.
Features
EP1K10QC208-3 features: (1)Programmable logic devices (PLDs), providing low cost system-on-a-programmable-chip (SOPC) integration in a single device: Enhanced embedded array for implementing megafunctions such as efficient memory and specialized logic functions, Dual-port capability with up to 16-bit width per embedded array block (EAB), Logic array for general logic functions; (2)High density: 10,000 to 100,000 typical gates, Up to 49,152 RAM bits (4,096 bits per EAB, all of which can be used without reducing logic capacity); (3)Cost-efficient programmable architecture for high-volume applications: Cost-optimized process, Low cost solution for high-performance communications applications.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1K10QC208-3 |
|
IC ACEX 1K FPGA 10K 208-PQFP |
Data Sheet |
|
|
||||||
|
EP1K10QC208-3N |
|
IC ACEX 1K FPGA 10K 208-PQFP |
Data Sheet |
|
|
||||||
