Product Summary

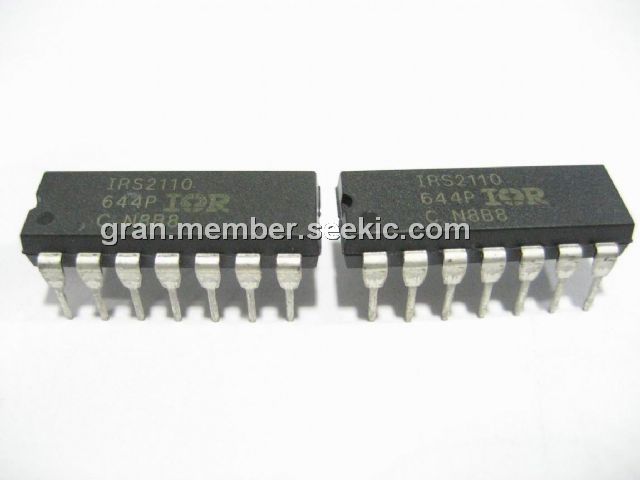

The IRS2110 is high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

Parametrics

Absolute maximum ratings: (1)High side floating supply voltage: -0.3V to 520V; (2)High side floating supply offset voltage: VB-20V to VB+0.3V; (3)High side floating output voltage: VS-0.3V to VB+0.3V ; (4)Low side fixed supply voltage: -0.3V to 20V; (5)Low side output voltage: -0.3V to VCC+0.3V ; (6)Logic supply voltage: -0.3V to VSS+20V; (7)Logic supply offset voltage: VCC-20V to VCC+0.3V; (8)Logic input voltage (HIN, LIN, & SD): VSS-0.3V to VDD+0.3V; (9)Allowable offset supply voltage transient: 50V/ns; (10)Junction temperature: 150℃ ; (11)Storage temperature: -55℃ to +150℃ ; (12)Lead temperature (soldering, 10 seconds): 300℃.

Features

Features: (1)Floating channel designed for bootstrap operation; (2)Fully operational to +500 V or +600 V; (3)Tolerant to negative transient voltage, dV/dt immune; (4)Gate drive supply range from 10 V to 20 V; (5)Undervoltage lockout for both channels; (6)3.3 V logic compatible; (7)Separate logic supply range from 3.3 V to 20 V; (8)Logic and power ground ±5V offset; (9)CMOS Schmitt-triggered inputs with pull-down; (10)Cycle by cycle edge-triggered shutdown logic; (11)Matched propagation delay for both channels; (12)Outputs in phase with inputs.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRS2110SPBF
IRS2110SPBF

International Rectifier

Power Driver ICs

Data Sheet

0-1: $2.52
1-25: $1.55
25-100: $1.28
100-250: $1.22
IRS2110STRPBF
IRS2110STRPBF

International Rectifier

Power Driver ICs Hi&Lw Sd Drvr All HiVolt Pins 1 Sd

Data Sheet

0-1: $2.77
1-25: $1.70
25-100: $1.41
100-250: $1.35
IRS2110PBF
IRS2110PBF

International Rectifier

Power Driver ICs Hi&Lw Sd Drvr All HiVolt Pins 1 Sd

Data Sheet

0-1: $2.76
1-25: $1.70
25-100: $1.40
100-250: $1.34
