Product Summary

The LM350K is a adjustable voltage regulator three-terminal 3 A. The LM350K adjustable 3-terminal positive voltage regulator is capable of supplying in excess of 3A over a 1.2V to 33V output range. The LM350K is exceptionally easy to use and require only 2 external resistors to set the output voltage. Further, both line and load regulation of the LM350K are comparable to discrete designs. Also, the LM150 is packaged in standard transistor packages which are easily mounted and handled.

Parametrics

LM350K absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input-Output Voltage Differential: +35V; (3)Storage Temperature: -65℃ to +150℃; (4)Lead Temperature. Metal Package (Soldering, 10 sec.): 300℃; (5)Plastic Package (Soldering, 4 sec.): 260℃; (6)ESD Tolerance: TBD; (7)Operating Temperature Range: LM350 0℃ ≤ TJ ≤ +125℃.

Features

LM350K features: (1)Adjustable output dowto 1.2V; (2)Guaranteed 3A output current; (3)Guaranteed thermal regulation; (4)Output is short circuit protected; (5)Current limit constant with temperature; (6)P+ Product Enhancement tested; (7)86 dB ripple rejection; (8)Guaranteed 1% output voltage tolerance.

Diagrams

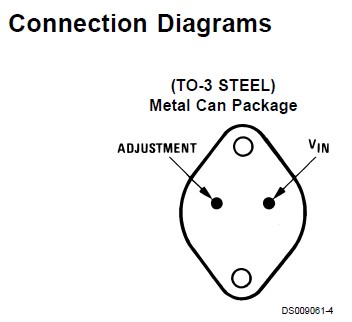

LM350K  Connection Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM350K STEEL
LM350K STEEL

National Semiconductor (TI)

Linear Regulators - Standard

Data Sheet

Negotiable
LM350K STEEL/NOPB
LM350K STEEL/NOPB


IC REG LDO ADJ 3A TO-3

Data Sheet

0-1: $22.44
1-10: $20.76
10-25: $19.07
25-100: $17.73
100-250: $16.27
250-500: $15.48
500-1000: $14.59
1000-2500: $14.14
2500-5000: $13.80
LM350KSTEEL
LM350KSTEEL

National Semiconductor (TI)

Linear Regulators - Standard

Data Sheet

0-50: $19.07
50-100: $17.66
100-250: $16.27
LM350KSTEEL/NOPB
LM350KSTEEL/NOPB

National Semiconductor (TI)

Linear Regulators - Standard

Data Sheet

0-30: $19.07
30-100: $17.66
100-250: $16.27
LM350K
LM350K

STMicroelectronics

Linear Regulators - Standard 1.2-25V Adj Positive

Data Sheet

0-1: $4.49
1-10: $3.68
10-100: $3.23
100-250: $2.98
