Product Summary

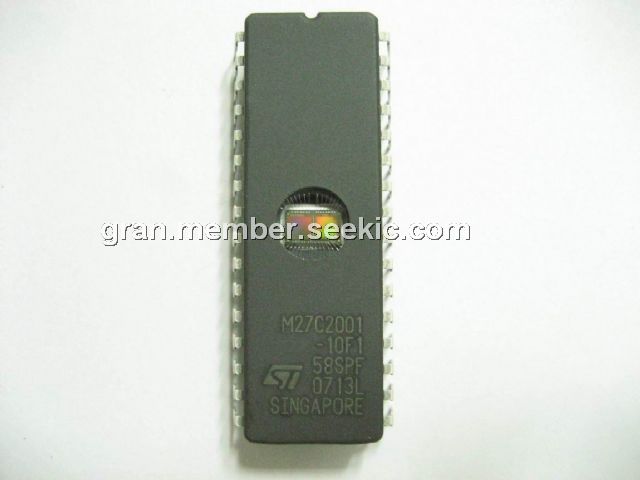

The M27C2001-10F1 is a high speed 2 Mbit EPROM of-fered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 by 8 bits.

Parametrics

Absolute maximum ratings: (1)Ambient Operating Temperature:–40℃ to 125℃; (2)Temperature Under Bias:–50℃ to 125℃; (3)Storage Temperature:–65℃ to 150℃; (4)Input or Output Voltage (except A9):–2V to 7 V; (5)Supply Voltage:–2V to 7 V; (6)A9 Voltage:–2V to 13.5 V; (7)Program Supply Voltage:–2V to 14 V.

Features

Features: (1)5V ± 10% supply voltage in read operation; (2)access time: 55ns; (3)low power consumption: active current 30mA at 5MHz, standby current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100μs/word.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M27C2001-10F1
M27C2001-10F1

STMicroelectronics

EPROM 2M (256Kx8) 100ns

Data Sheet

Negotiable
