Product Summary

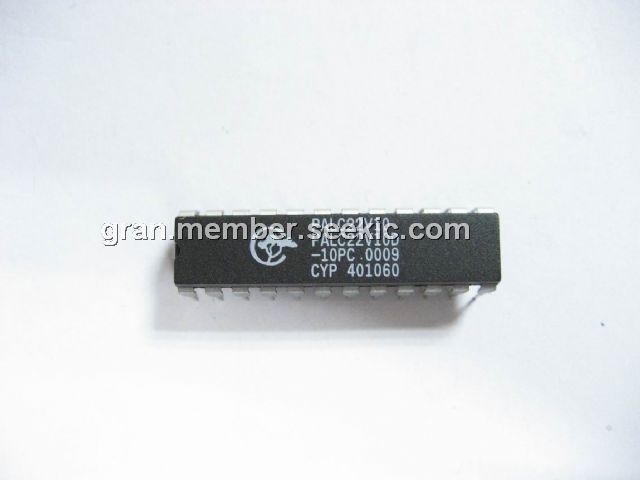

The PALC22V10D-10PC is a Flash-erasable Reprogrammable CMOS PAL Device.

Parametrics

PALC22V10D-10PC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Supply Voltage to Ground Potential (Pin 24 to Pin 12): –0.5V to +7.0V; (4)DC Voltage Applied to Outputs in High-Z State: –0.5V to +7.0V; (5)DC Input Voltage: –0.5V to +7.0V.

Features

PALC22V10D-10PC features: (1)Low power: 90 mA max. commercial (10 ns), 130 mA max. commercial (5 ns); (2)CMOS Flash EPROM technology for electrical erasability and reprogrammability; (3)Variable product terms: 2x8 through 16) product terms; (4)User-programmable macrocell: Output polarity control, Individually selectable for registered or combinatorial; (5)operation; (6)Up to 22 input terms and 10 outputs.

Diagrams

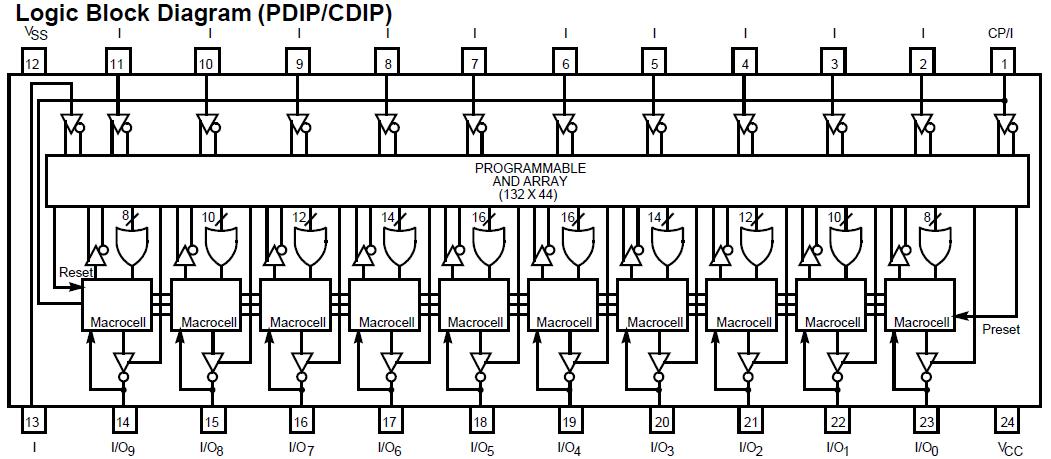

PALC22V10D-10PC block diagram
