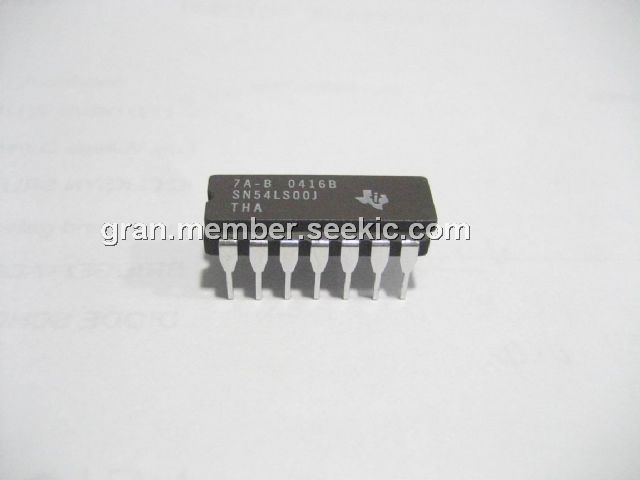

The SN54LS00J is a quad 2-input nand gate.
Parametrics
SN54LS00J absolute maximum ratings: (1)VCC Supply Voltage: 4.5 5.0V; (2)TA Operating Ambient Temperature Range: –55 125℃; (3)IOH Output Current-High: -0.4 mA; (4)IOL Output Current-Low: 4.0mA.
Features
SN54LS00J feature: (1)IIL Input LOW Current -0.4 mA VCC = MAX, VIN = 0.4 V; (2)IOS Short Circuit Current -20 -100 mA VCC = MAX ICC; (3)Power Supply Current I Total, Output HIGH 1.6 mA VCC CC Total, Output LOW 4.4= MAX.

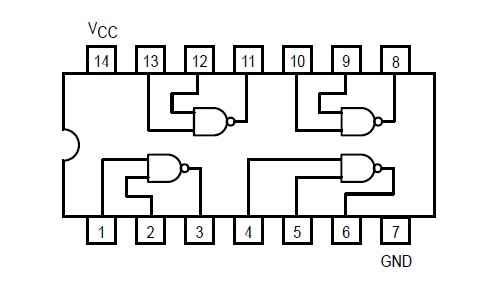

Diagrams
 |
