Product Summary

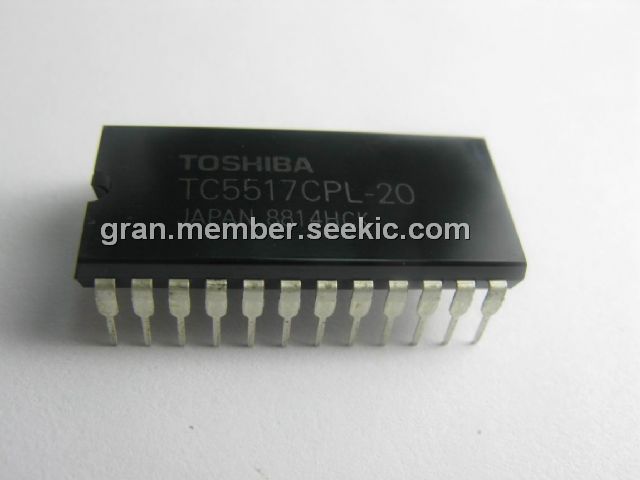

The TC5517CPL-20 is a 16384 bit high speed and low power fully static random access memory organized as 2084 words by 8 bit using CMOS technology, and operates from a single 5 volt supply. The TC5517CPL-20 has a output control and chip enable input CE, which is used for device selection and can be used in order to achieve minimum standby current mode easily for battery back up.
Parametrics
TC5517CPL-20 absolute maximum ratings: (1)VDD Power supply voltage: -0.3 to 7.0V; (2)VIN input voltage: -0.3 to VDD +0.3V; (3)PD power dissipation: 0.8W; (4)TSTG storage temperature: -55 to 150℃; (5)Operating temperature: -40 to 85℃; (6)Soldering temperature. Time: 260℃.10sec.
Features
TC5517CPL-20 features: (1)Low power dissipation; (2)5V single power supply; (3)Low voltage operation; (4)Fully static operation; (5)Data retention voltage 2.0 to 5.5V.
Diagrams
 |
