Product Summary

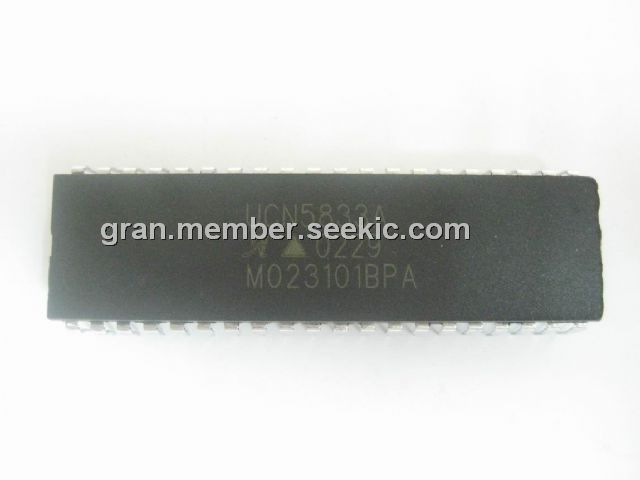

The UCN5833A is a BiMOS II 32-bit serial-input, latched driver. Designed to reduce logic supply current, chip size, and system cost, the UCN5833A integrated circuits offer high-speed operation for thermal printers. These devices can also be used to drive multiplexed LED displays or incandescent lamps within their 125 mA peak output current rating. The combination of bipolar and MOS technologies gives UCN5833A smart power ICs an interface flexibility beyond the reach of standard buffers and power driver circuits.

Parametrics

UCN5833A absolute maximum ratings: (1)Output Voltage, VOUT: 30 V; (2)Logic Supply Voltage, VDD: 7.0 V; (3)Input Voltage Range, VIN: -0.3 V to VDD + 0.3 V; (4)Continuous Output Current,; (5)lOUT (each output): 125 mA; (6)Package Power Dissipation, PD: 3.5 W; (7)Operating Temperature Range, TA: -20℃ to +85℃; (8)Storage Temperature Range, TS: -55℃ to +150℃.

Features

UCN5833A features: (1)To 3.3 MHz Data Input Rate; (2)30 V Minimum Output Breakdown; (3)Darlington Current-Sink Outputs; (4)Low-Power CMOS Logic and Latches.

Diagrams

UCN5833A diagram
