Product Summary
The AD8113 includes 16 independent output buffers that ca
be placed into a disabled state for paralleling crosspoint outp
so that off channel loading is minimized. The AD8113 has a
gain of +2. It operates on voltage supplies of ±5 V or ±12 V
while consuming only 34 mA or 31 mA of current, respective
The channel switching is performed via a serial digital contro
(which can accommodate daisy-chaining of several devices) o
via a parallel control, allowing updating of an individual outp
without reprogramming the entire array.
The AD8113 is packaged in a 100-lead LQFP and is availabl
over the commercial temperature range of 0°C to 70°C.
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AD8113JST |
![]() Analog Devices Inc |
![]() IC AUD/VID SW 16X16 BUFF 100LQFP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
![]() |

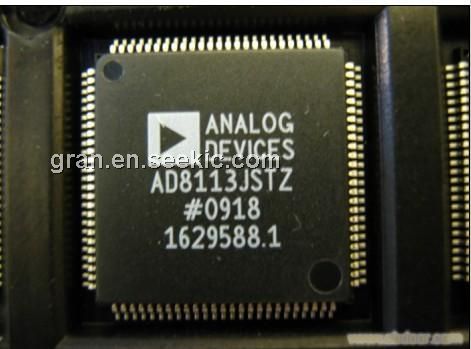

![]() AD8113JSTZ |
![]() |
![]() IC VIDEO CROSSPOINT SWIT 100LQFP |
![]() Data Sheet |
![]()
|
|
