Product Summary

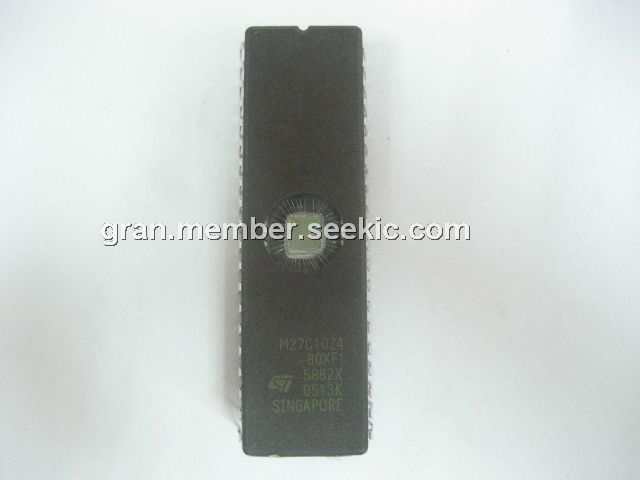

The M27C1024-80XF1 is a 1 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organized as 65,536 words of 16 bits. The FDIP40W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

Parametrics

Absolute maximum ratings: (1)Ambient Operating Temperature: -40 to 125 ℃; (2)Temperature Under Bias: -50 to 125 ℃; (3)Storage Temperature: -65 to 150 ℃; (4)Input or Output Voltages (except A9): -2 to 7 V; (5)Supply Voltage: -2 to 7 V; (6)A9 Voltage: -2 to 13.5 V; (7)Program Supply Voltage: -2 to 14 V.

Features

Features: (1)5V ± 10% supplyvoltage in read operation; (2)fastaccess time: 35ns; (3)low power consumption: Active Current 35mA at 5MHz, Standby Current 100mA; (4)programming voltage: 12.75V ± 0.25V; (5)programmingtime: 100ms/byte (typical); (6)electronic signature: Manufacturer Code: 0020h, Device Code: 008Ch.

Diagrams

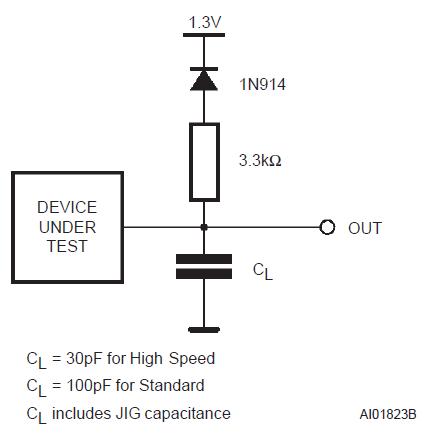

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M27C1024-80XF1
M27C1024-80XF1

STMicroelectronics

EPROM 1M (64Kx16) 80ns

Data Sheet

Negotiable
