Product Summary

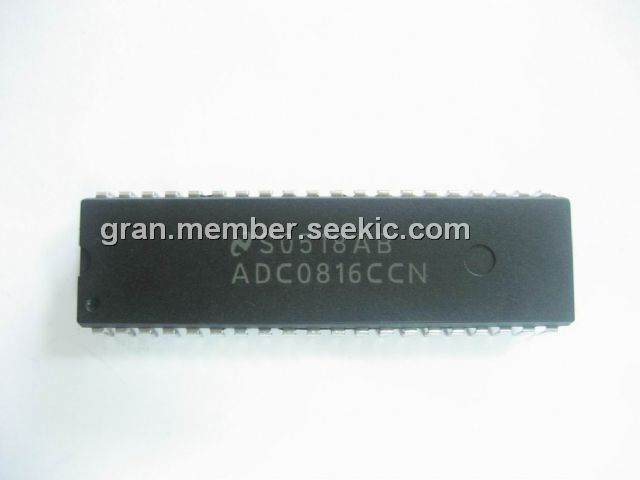

The ADC0816CCN is a monolithic CMOS device with an 8-bit analog-to-digital converter, 16-channel multiplexer and microprocessor compatible control logic. The ADC0816CCN uses successive approximation as the conversion technique. It features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register.
Parametrics
ADC0816CCN absolute maximum ratings: (1)Supply Voltage (VCC): 6.5V; (2)Voltage at Any Pin Except Control Inputs: -0.3V to (VCC+0.3V); (3)Voltage at Control Inputs: -0.3V to 15V; (4)Storage Temperature Range: -65℃ to + 150℃; (5)Package Dissipation at TA = 25℃: 875 mW; (6)Lead Temp. (Soldering, 10 seconds): Dual-In-Line Package (Plastic): 260℃, Molded Chip Carrier Packag Vapor Phase (60 seconds): 215℃, Infrared (15 seconds): 220℃; (7)ESD Susceptibility: 400V.
Features
ADC0816CCN features: (1)Easy interface to all microprocessors; (2)Operates ratiometrically or with 5 VDC or analog span adjusted voltage reference; (3)16-channel multiplexer with latched control logic; (4)Outputs meet TTL voltage level specifications; (5)0V to 5V analog input voltage range with single 5V supply; (6)No zero or full-scale adjust required; (7)Standard hermetic or molded 40-pin DIP package; (8)Temperature range: -40℃ to +85℃ or -55℃ to +125℃; (9)Latched TRI-STATE output.

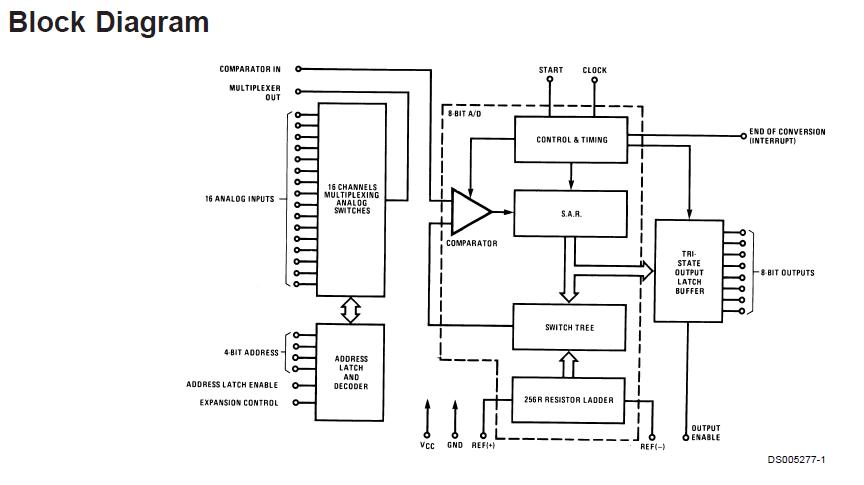

Diagrams
