Product Summary

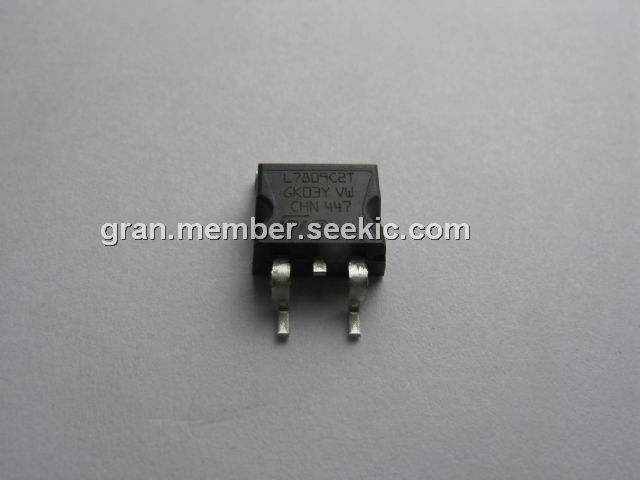

The L7809CD2T of three-terminal positive regulator is available in TO-263 packages and several fixed output voltages, making L7809CD2T useful in a wide range of applications. The L7809CD2T can provide local on-card regulation, eliminating the distribution problems associated with single point regulation.
Parametrics
L7809CD2T maximum ratings: (1)DC Input Voltage, for VO= 5 to 18V, VI: 35V; (2)DC Input Voltage, for VO= 20, 24V, VI: 40V; (3)Storage Temperature Range, Tstg: -65 to 150℃; (4)Operating Junction Temperature Range, Top, for L7800: -55 to 150℃; (5)Operating Junction Temperature Range, Top, for L7800C: 0 to 150℃.
Features
L7809CD2T features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.

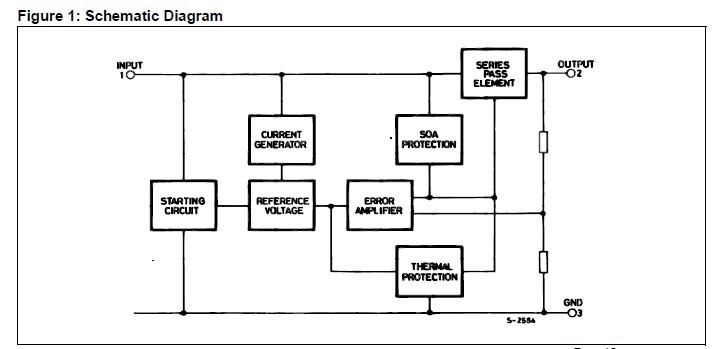

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L7809CD2T |
STMicroelectronics |
Linear Regulators - Standard 9.0V 1.0A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
|
L7809CD2T-TR |
STMicroelectronics |
Linear Regulators - Standard 9.0V 1.0A Positive |
Data Sheet |
|
|
||||||||||||
