Product Summary

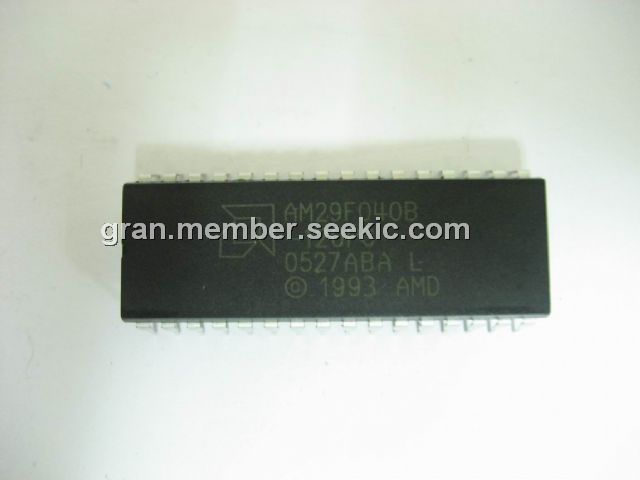

The AM29F040B-120PC is a 4 Mbit, 5.0 volt-only Flash memory, which is organized as 524,288 Kbytes of 8 bits each. The 512 Kbytes of data are divided into eight sectors of 64 Kbytes each for flexible erase capability. The 8 bits of data appear on DQ0–DQ7. The AM29F040B-120PC is offered in 32-pin PLCC, TSOP, and PDIP packages. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for write or erase operations. The AM29F040B-120PC can also be programmed in standard EPROM programmers.
Parametrics
AM29F040B-120PC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –2.0 V to 7.0 V, A9, OE#: –2.0 V to 12.5 V, All other pins: –2.0 V to 7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29F040B-120PC features: (1)5.0 V ± 10% for read and write operations: Minimizes system level power requirements; (2)Manufactured on 0.32 μm process technology: Compatible with 0.5 μm Am29F040 device; (3)High performance: Access times as fast as 55 ns; (4)Low power consumption: 20 mA typical active read current, 30 mA typical program/erase current, 1 μA typical standby current (standard access time to active mode); (5)Flexible sector architecture: 8 uniform sectors of 64 Kbytes each, Any combination of sectors can be erased.

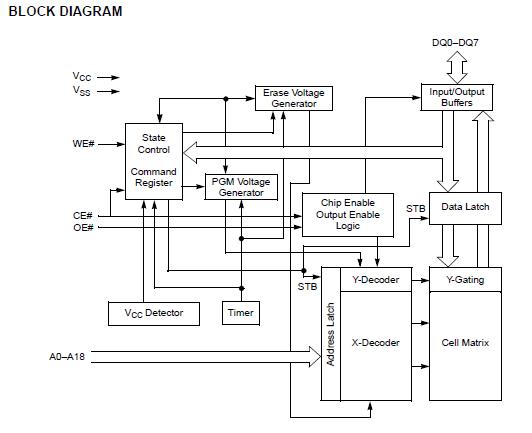

Diagrams
 |
