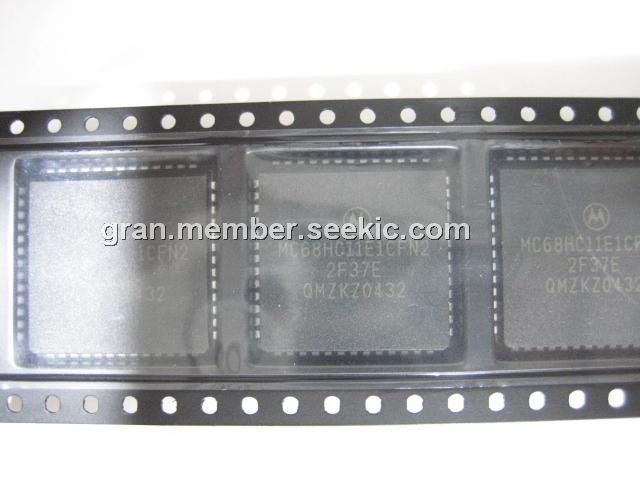

The MC68HC11E1CFN2 is a 8-bit microcontroller unit (MCU). The MCU combines the M68HC11 central processor unit (CPU) with high-performance, on-chip peripherals.
Parametrics
MC68HC11E1CFN2 absolute maximum ratings: (1)Supply voltage: –0.3 to +7.0 V; (2)Input voltage: –0.3 to +7.0 V; (3)Current drain per pin excluding VDD, VSS, AVDD, VRH, VRL, and XIRQ/VPPE: 25 mA; (4)Storage temperature: –55 to +150 ℃.
Features
MC68HC11E1CFN2 features: (1)M68HC11 CPU; (2)Power-saving stop and wait modes; (3)Low-voltage devices available (3.0±0.5 Vdc); (4)0, 256, 512, or 768 bytes of on-chip RAM, data retained during standby; (5)0, 12, or 20 Kbytes of on-chip ROM or EPROM; (6)0, 512, or 2048 bytes of on-chip EEPROM with block protect for security; (7)2048 bytes of EEPROM with selectable base address in the MC68HC811E2; (8)Asynchronous non-return-to-zero (NRZ) serial communications interface (SCI); (9)Additional baud rates available on MC68HC(7)11E20; (10)Synchronous serial peripheral interface (SPI); (11)8-channel, 8-bit analog-to-digital (A/D) converter; (12)8-bit pulse accumulator; (13)Real-time interrupt circuit.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC11E1CFN2 |
|
IC MCU 512 EEPROM 2MHZ 52-PLCC |
Data Sheet |
Negotiable |
|
||||
|
MC68HC11E1CFN2R2 |
|
IC MCU 512 EEPROM 2MHZ 52-PLCC |
Data Sheet |
Negotiable |
|
||||
