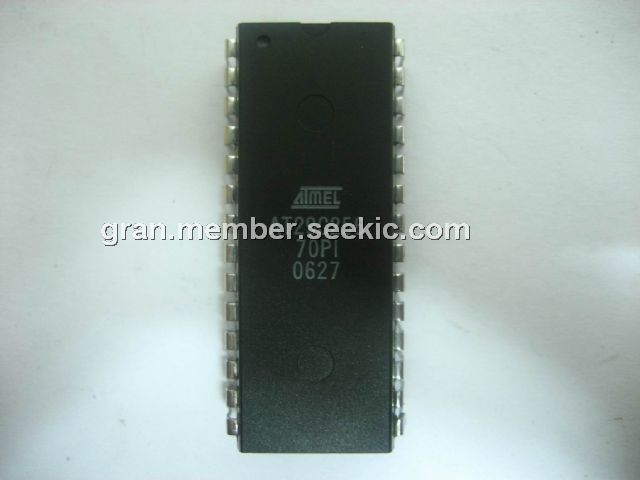

AT29C256-70PI

DIP, CMOS, flash memory, 70 ns, 5V, 275 mW, Flash programmable

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.20~3.20

PartNumber:: AT29C256-70PI

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ruth's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-20

From Other Seller

Part Number:AT29C256-70PI
US $3.20 - 3.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C256-70PI is a five-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 256K of memory of the AT29C256-70PI is organized as 32,768 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT29C256-70PI offers access times to 70 ns with power dissipation of just 275 mW. When the device is deselected, the CMOS standby current is less than 300 μA. The AT29C256-70PI endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C256-70PI absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C256-70PI features: (1)Fast Read Access Time 70 ns; (2)5-volt Only Reprogramming; (3)Page Program Operation; (4)Single Cycle Reprogram (Erase and Program); (5)Internal Address and Data Latches for 64 Bytes. Internal Program Control and Timer. Hardware and Software Data Protection; (6)Typical Endurance > 10,000 Cycles; (7)Single 5V ±10% Supply; (8)CMOS and TTL Compatible Inputs and Outputs; (9)Commercial and Industrial Temperature Ranges.
