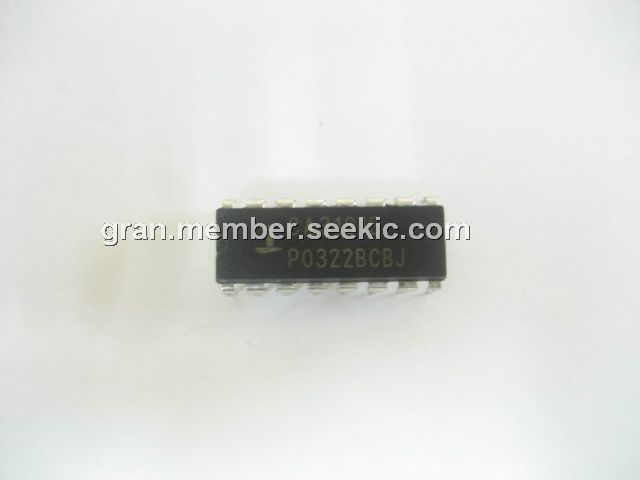

Product Summary

The CA3161E is a monolithic integrated circuit that performs the BCD to seven segment decoding function and features constant current segment drivers. When used with the CA3161E A/D Converter the CA3161E provides a complete digital readout system with a minimum number of external parts.

Parametrics

CA3161E absolute maximum ratings: (1)DC VSUPPLY (Between Terminals 1 and 10): +7.0V; (2)Input Voltage (Terminals 1, 2, 6, 7): +5.5V; (3)Output Voltage: Output "Off" :+7V, Output "On" : +10V; (4)Temperature Range : 0℃ to 75℃.

Features

CA3161E features: (1)TTL Compatible Input Logic Levels; (2)25mA (Typ) Constant Current Segment Outputs; (3)Eliminates Need for Output Current Limiting Resistors; (4)Pin Compatible with Other Industry Standard Decoders; (5)Low Standby Power Dissipation: 18mW (Typ).

Diagrams

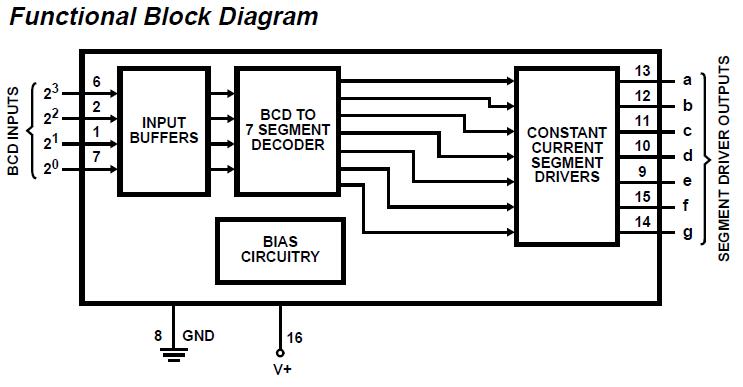

CA3161E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CA3161E
CA3161E

Other


Data Sheet

Negotiable
