EP20K100EBC356-2

PLD, BGA356, –0.5 to 3.6 V, –25 to 25 mA, MultiCore architecture, Embedded system block

Rated 5 Rating 5 | reviews | Write a review

Price:: US $24.50~24.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $24.50~24.50

PartNumber:: EP20K100EBC356-2

Brand:: Altera Corporation - ALTR | Pack: BGA | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ruth's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-08

From Other Seller

Part Number:EP20K100EBC356-2
US $24.50 - 24.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EP20K100EBC356-2 is the first PLD, which is designed with the MultiCore architecture. It combines the strengths of LUT-based and productterm-based devices with an enhanced memory structure. LUT-based logic of the EP20K100EBC356-2 provides optimized performance and efficiency for data-path, registerintensive, mathematical, or digital signal processing (DSP) designs.

Parametrics

EP20K100EBC356-2 absolute maximum ratings: (1)Supply voltage: –0.5 to 3.6 V With respect to ground; (2)DC input voltage: –2.0 to 5.75 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)Junction temperature PQFP, RQFP, TQFP, and BGA packages, under bias: 135 ℃, Ceramic PGA packages, under bias: 150 ℃.

Features

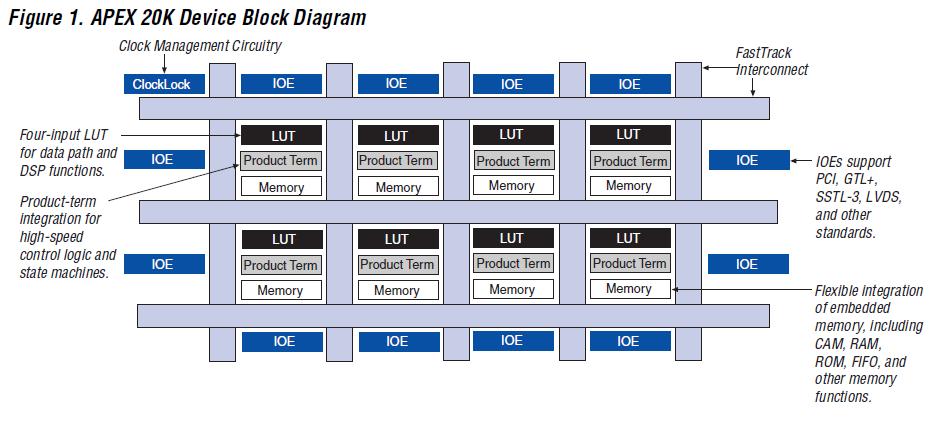

EP20K100EBC356-2 features: (1)MultiCore architecture integrating look-up table (LUT) logic, product-term logic, and embedded memory; (2)LUT logic used for register-intensive functions; (3)Embedded system block (ESB) used to implement memory functions, including first-in first-out (FIFO) buffers, dual-port RAM, and content-addressable memory (CAM); (4)ESB implementation of product-term logic used for combinatorial-intensive functions.
