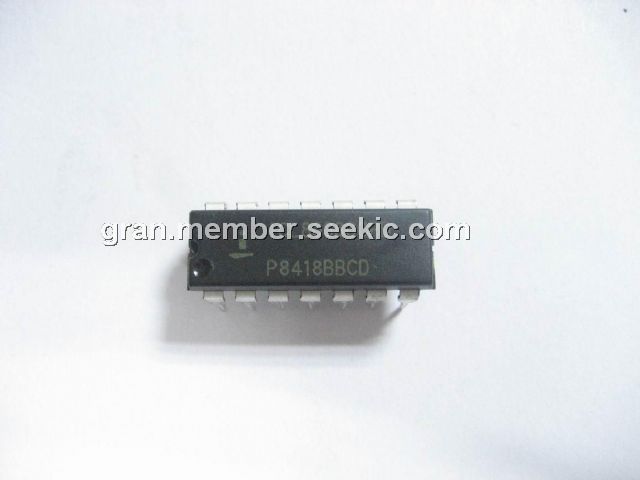

ICL8038CCPD

waveform generator, monolithic integrated circuit, 0.001Hz to 300kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~1.50

PartNumber:: ICL8038CCPD

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ruth's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-25

From Other Seller

Part Number:ICL8038CCPD
US $1.50 - 1.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ICL8038CCPD waveform generator is a monolithic integrated circuit capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms with a minimum of external components. It is fabricated with advanced monolithic technology, using Schottky barrier diodes and thin film resistors, and the output is stable over a wide range of temperature and supply variations.

Parametrics

Absolute maximum ratings: (1)Supply Voltage(V- to V+): 36V; (2)Input Voltage(Any Pin): V- to V+; (3)Input Current(Pins 4 and 5): 25mA; (4)Output Sink Current(Pins 3 and 9): 25mA; (5)Maximum Junction Temperature (Ceramic Package): 175℃; (6)Maximum Junction Temperature (Plastic Package): 175℃; (7)Maximum Storage Temperature Range:-65℃ to 150℃ ; (8)Maximum Lead Temperature (Soldering 10s): 300℃.

Features

Features: (1)Low Frequency Drift with Temperature:250ppm/℃; (2)Low Distortion:1%(Sine Wave Output); (3)High Linearity:0.1%(Triangle Wave Output); (4)Wide Frequency Range:0.001Hz to 300kHz; (5)Variable Duty Cycle:2% to 98%; (6)High Level Outputs:TTL to 28V; (7)Simultaneous Sine, Square, and Triangle Wave Outputs; (8)Easy to Use - Just a Handful of External Components Required.
