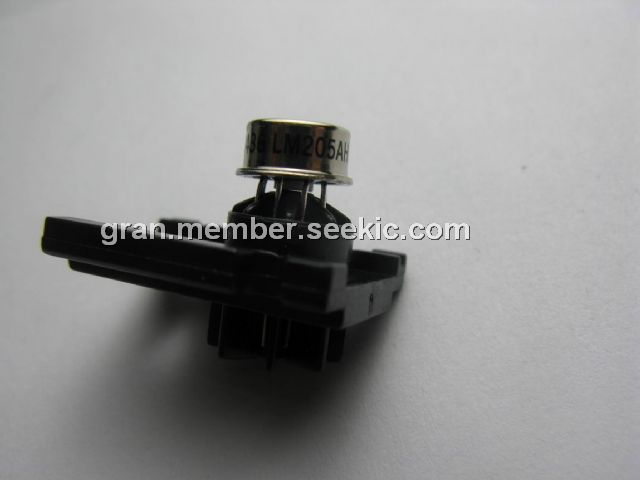

Product Summary

The LM205AH is a positive voltage regulator similar to the LM100, except that an extra gain stage has been added for improved regulation. A redesign of the biasing circuitry removes any minimum load current requirement and at the same time reduces standby current drain, permitting higher voltage operation. The LM205AH is direct, plug-in replacements for the LM100 in both linear and switching regulator circuits with output voltages greater than 4.5V.

Parametrics

LM205AH absolute maximum ratings: (1)Input Voltage: 50V; (2)Input-Output Differential: 40V; (3)Power Dissipation: 800 mW; (4)Operating Temperature Range: -55℃ to +125℃; (5)Storage Temperature Range: -65℃ to +150℃.

Features

LM205AH features: (1)Output voltage adjustable from 4.5V to 40V; (2)Output currents in excess of 10A possible by adding external transistors; (3)Load regulation better than 0.1%, full load with current limiting DC line regulation guaranteed at 0.03%/V; (4)Ripple rejection on 0.01%V; (5)45 mA output current without external pass transistor.

Diagrams

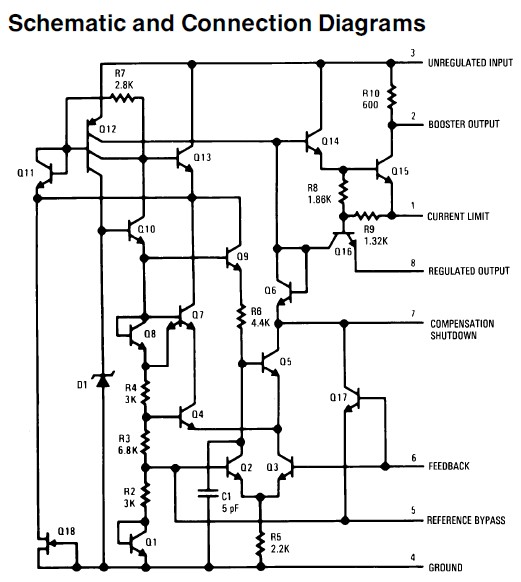

LM205AH Schematic and Connection Diagrams
