Product Summary

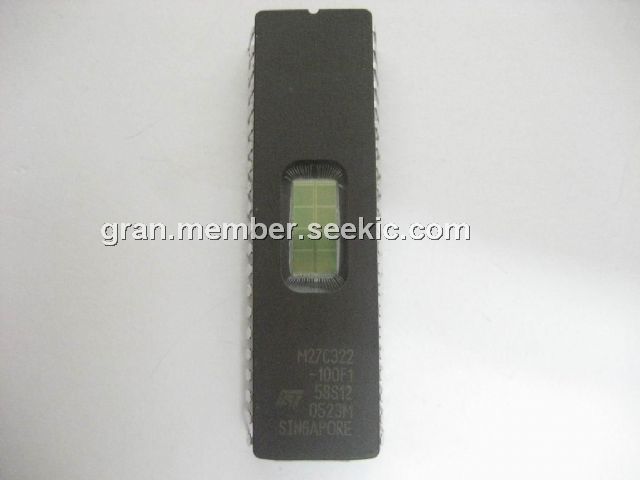

The M27C322-100F1 is a 32 Mbit EPROM offered in the UV range (ultra violet erase). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as 2 MWords of 16 bit. The pin-out is compatible with a 32 Mbit Mask ROM.
Parametrics
Absolute maximum ratings: (1)Ambient Operating Temperature: -40 to 125 ℃; (2)Temperature Under Bias: -50 to 125 ℃; (3)Storage Temperature: -65 to 150 ℃; (4)Input or Output Voltage (except A9): -2 to 7 V; (5)Supply Voltage: -2 to 7 V; (6)A9 Voltage: -2 to 13.5 V; (7)Program Supply Voltage: –2 to 14 V.
Features
Features: (1)5V ± 10% supply voltage in read operation; (2)access time: 80ns; (3)word-wide configurable; (4)32 Mbit mask rom replacement; (5)low power consumption: Active Current 50mA at 5MHz, Stand-by Current 100μA; (6)programming voltage: 12V ± 0.25V; (7)programming time: 50μs/word; (8)electronic signature: Manufacturer Code: 0020h, Device Code: 0034h.

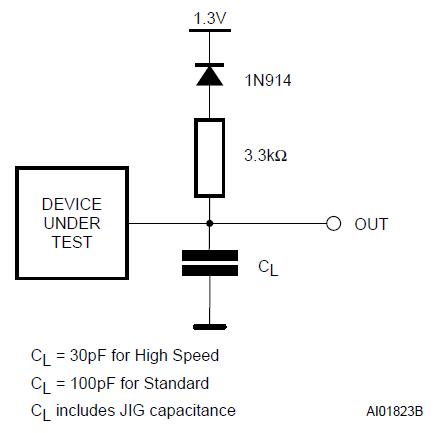

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C322-100F1 |
STMicroelectronics |
EPROM 32M (2Mx16) 100ns |
Data Sheet |
Negotiable |
|
||||
