Product Summary

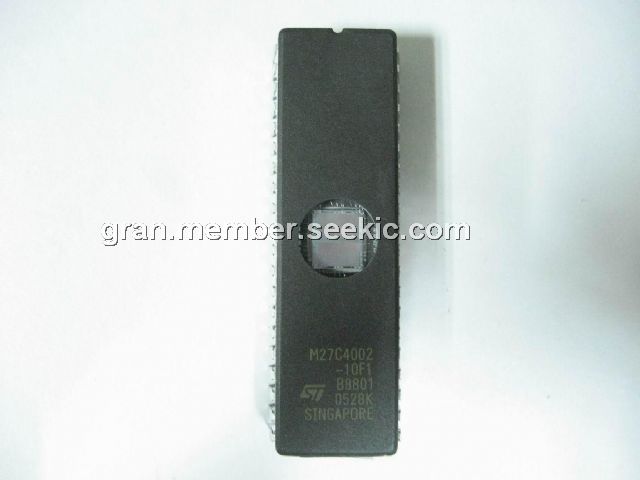

The M27C4002-10F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 words of 16 bits. The FDIP40W (window ceramic frit-seal package) and the JLCC44W (J-lead chip carrier packages) have transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

Parametrics

Absolute maximum ratings: (1)Ambient Operating Temperature: -40 to 125 ℃; (2)Temperature Under Bias: -50 to 125 ℃; (3)Storage Temperature: -65 to 150 ℃; (4)Input or Output Voltage (except A9): -2 to 7 V; (5)Supply Voltage: -2 to 7 V; (6)A9 Voltage: -2 to 13.5 V; (7)VPP Program Supply Voltage: -2 to 14 V.

Features

Features: (1)5V ± 10% supply voltage in read operation; (2)access time: 45ns; (3)low power consumption: Active Current 70mA at 10MHz, Standby Current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100μs/word; (6)electronic signature: Manufacturer Code: 20h, Device Code: 44h.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M27C4002-10F1
M27C4002-10F1

STMicroelectronics

EPROM 4M (256Kx16) 100ns

Data Sheet

Negotiable
