Product Summary

The MM74C193N is a Synchronous 4-Bit Up/Down Binary Counter. It is monolithic complementary MOS (CMOS) integrated circuit. Counting up and counting down of the MM74C193N is performed by two count inputs, one being held high while the other is clocked. The outputs change on the positive-going transition of this clock.

Parametrics

MM74C193N absolute maximum ratings: (1)Voltage at Any Pin: -0.3V to VCC + 0.3V; (2)Operating Temperature Range (TA): -40℃ to +85℃; (3)Storage Temperature Range (TS): -65℃ to +150℃; (4)Maximum VCC Voltage: 18V; (5)Power Dissipation (PD): Dual-In-Line 700 mW, Small Outline 500 mW; (6)Operating VCC Range: 3V to 15V; (7)Lead Temperature (TA) (Soldering, 10 sec.): 260℃.

Features

MM74C193N features: (1)High noise margin 1V guaranteed; (2)Tenth power TTL compatible Drive 2 LPTTL loads; (3)Wide supply range 3V to 15V; (4)Carry and borrow outputs for N-bit cascading; (5)Asynchronous clear; (6)High noise immunity 0.45 VCC (typ.).

Diagrams

MM74C193N Connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

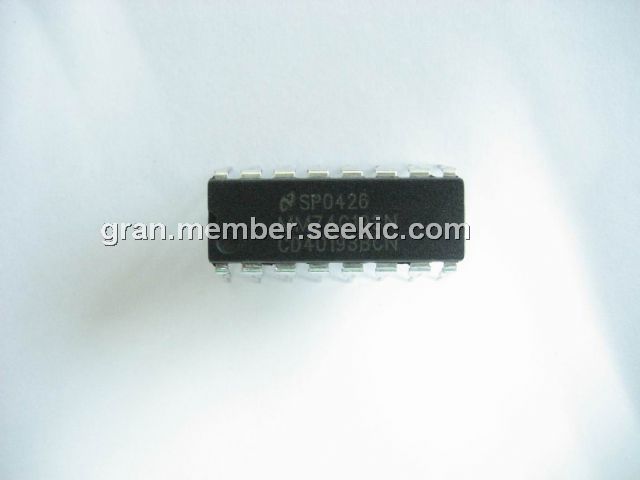

MM74C193N
MM74C193N

Fairchild Semiconductor

Counter ICs Syn 4-Bit Decade Ctr

Data Sheet

Negotiable
