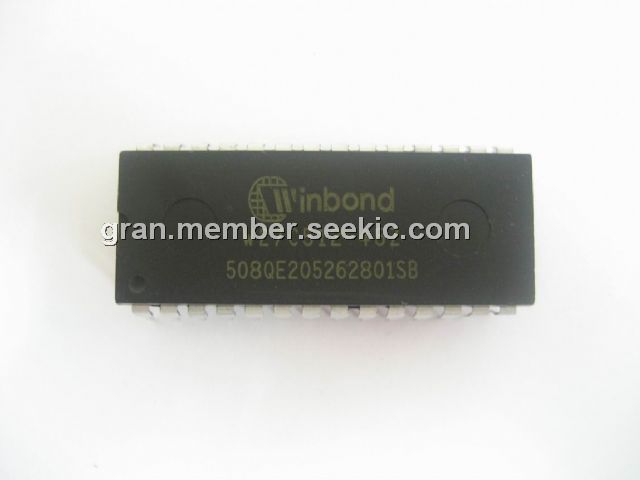

W27C512-45Z

Programmable Read Only Memory, DIP, -0.5 to VCC +0.5 V, electrical chip erase function

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.00

PartNumber:: W27C512-45Z

Brand:: Winbond - Winbond | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ruth's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-08

From Other Seller

Part Number:W27C512-45Z
US $1.00 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

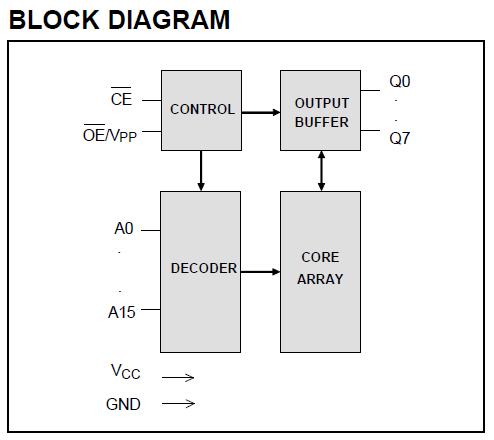

The W27C512-45Z is a high speed, low power Electrically Erasable and Programmable Read Only Memory, which is organized as 65536×8 bits that operates on a single 5 volt power supply. The W27C512-45Z provides an electrical chip erase function.

Parametrics

W27C512-45Z absolute maximum ratings: (1)Operation Temperature: 0 to +70 ℃; (2)Storage Temperature: -65 to +125 ℃; (3)Voltage on all Pins with Respect to Ground Except OE/VPP, A9 and VCC Pins: -0.5 to VCC +0.5 V; (4)Voltage on OE/VPP Pin with Respect to Ground: -0.5 to +14.5 V; (5)Voltage on A9 Pin with Respect to Ground: -0.5 to +14.5 V; (6)Voltage VCC Pin with Respect to Ground: -0.5 to +7 V.

Features

W27C512-45Z features: (1)High speed access time: 45/70/90/120 nS (max.); (2)Read operating current: 30 mA (max.); (3)Erase/Programming operating current 30 mA (max.); (4)Standby current: 1 mA (max.); (5)Single 5V power supply; (6)+14V erase/+12V programming voltage; (7)Fully static operation; (8)All inputs and outputs directly TTL/CMOS compatible; (9)Three-state outputs; (10)Available packages: 28-pin 600 mil DIP, 330 mil 32-pin PLCC.
