Product Summary

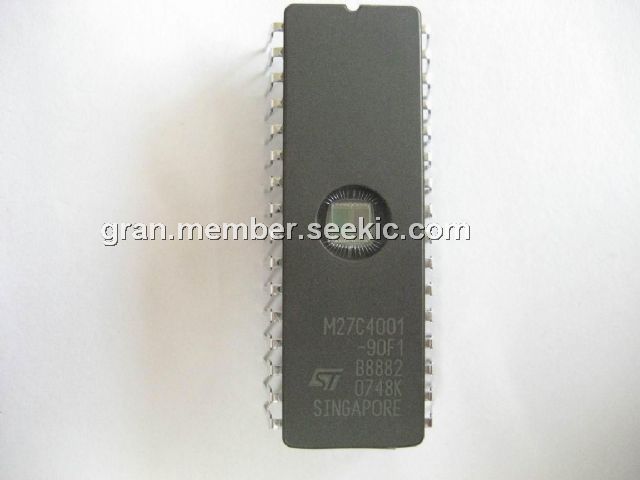

The M27C4001-90F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 524,288 by 8 bits. The FDIP32W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

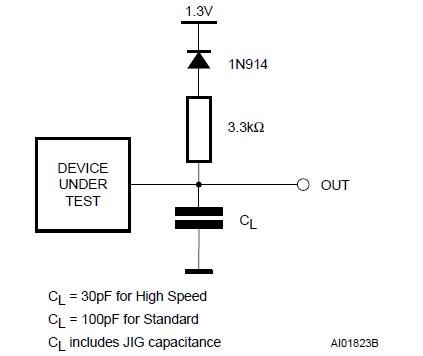

Parametrics

Absolute maximum ratings: (1)Ambient Operating Temperature: -40 to 125 ℃; (2)Temperature Under Bias: -50 to 125 ℃; (3)Storage Temperature: -65 to 150 ℃; (4)Input or Output Voltage (except A9): -2 to 7 V; (5)Supply Voltage: -2 to 7 V; (6)A9 Voltage: -2 to 13.5 V; (7)Program Supply Voltage: -2 to 14 V.

Features

Features: (1)5V ± 10% supply voltage in Read operation; (2)Access time: 35ns; (3)Low power consumption: Active Current 30mA at 5MHz, Standby Current 100μA; (4)Programming voltage: 12.75V ± 0.25V; (5)Programming time: 100μs/Word; (6)Electronic signature: Manufacturer Code: 20h, Device Code: 41h; (7)Packages: ECOPACKR compliant versions.
