Product Summary

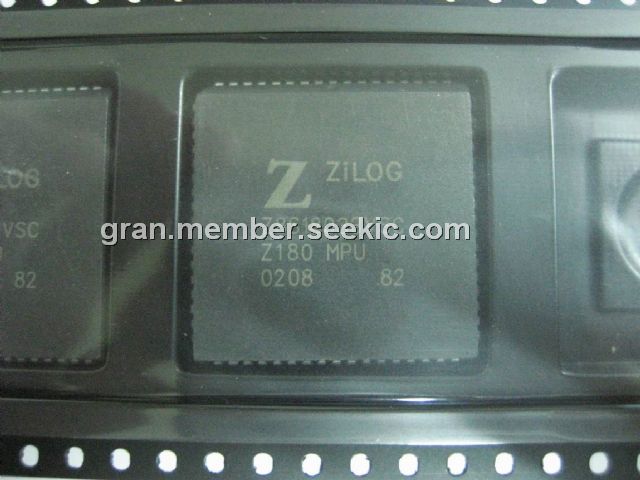

The Z8S18033VSC microprocessor significantly improves on previous Z80180 models, while still providing full backward compatibility with existing ZiLOG Z80 devices. The Z8S18033VSC now offers faster execution speeds, power-saving modes, and EMI noise reduction.
Parametrics
Z8S18033VSC absolute maximum ratings: (1)supply voltage: -0.3 to +7.0 V; (2)input voltage: -0.3 to VCC+0.3 V; (3)operating temperature: 0 to 70 ℃; (4)extended temperature: -40 to 85 ℃; (5)storage temperature: -55 to +150 ℃.
Features
Z8S18033VSC features: (1)Code Compatible with ZiLOG Z80?CPU; (2)Extended Instructions; (3)Two Chain-Linked DMA Channels; (4)Low Power-Down Modes; (5)On-Chip Interrupt Controllers; (6)Three On-Chip Wait-State Generators; (7)On-Chip Oscillator/Generator; (8)Expanded MMU Addressing (Up to 1 MB); (9)Clocked Serial I/O Port; (10)Two 16-Bit Counter/Timers; (11)Two Enhanced UARTs (up to 512 Kbps); (12)Clock Speeds: 10, 20, 33 MHz; (13)Operating Range: 5V (3.3V@ 20 MHz); (14)Operating Temperature Range: 0℃ to +70℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z8S18033VSC |
ZiLOG |
Microprocessors (MPU) 33MHz STATIC Z180 |
Data Sheet |
Negotiable |
|
||||||
|
Z8S18033VSC00TR |
|
IC Z180 MPU 68PLCC |
Data Sheet |
|
|
||||||
